Removal - Right Air Pump Switchover Valve

REMOVAL - RIGHT AIR PUMP SWITCHOVER VALVE

1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.
3. Remove the Air Pump Removal.

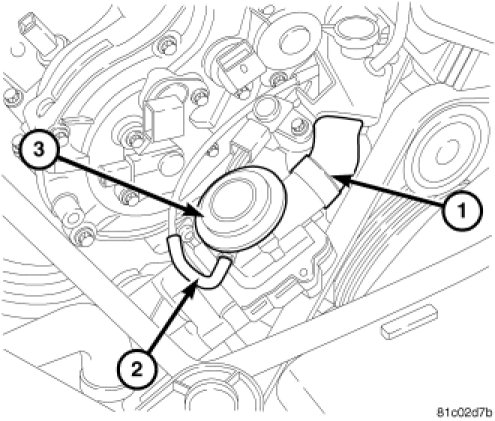

4. Disconnect the vacuum line (2).
5. Disconnect the air pump switchover tube (1).

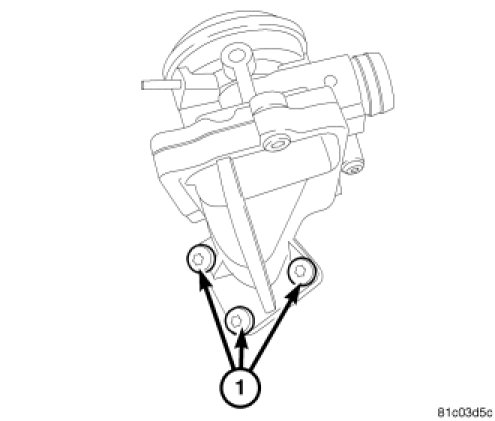

6. Remove the air pump switchover valve retaining bolts (1).




7. Remove the air pump switchover valve (3) discard the old gasket.
