Removal - Left Air Pump Switchover Valve

REMOVAL - LEFT AIR PUMP SWITCHOVER VALVE

1. Disconnect the negative battery cable.
2. Remove the air filter housing.

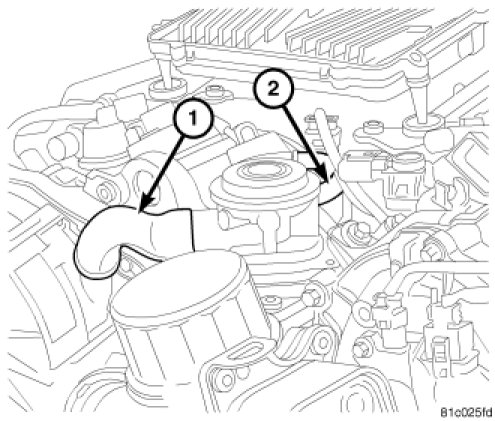

3. Disconnect the vacuum line (2).
4. Disconnect the air pump switchover tube (1).

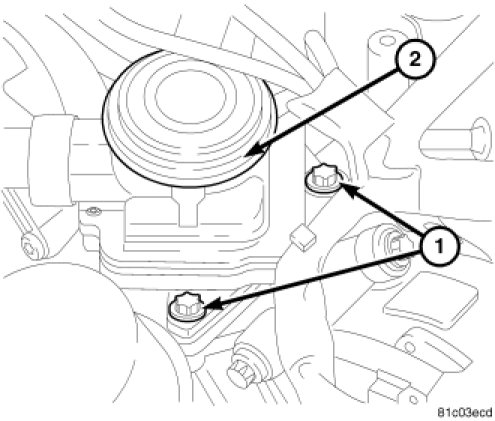

5. Remove the air pump switchover valve retaining bolts (1).
6. Remove the air pump switchover valve (2) and discard the old gasket.
