Glove Box Lamp: Diagrams

Component ID: 252

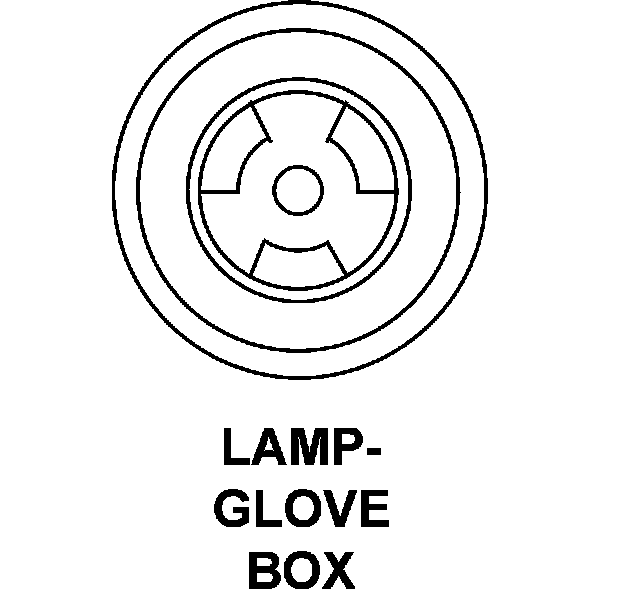

Component : LAMP-GLOVE BOX

Connector:
Name : LAMP-GLOVE BOX
Color :
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 570 14BR GROUND
2 U354 14BK/YL -
