Oil Pump

INSTALLATION





1. Clean the strainer of the oil pump and replace sealing ring. Fill oil pump with engine oil so that oil is delivered when first starting engine.
2. Install the oil pump.

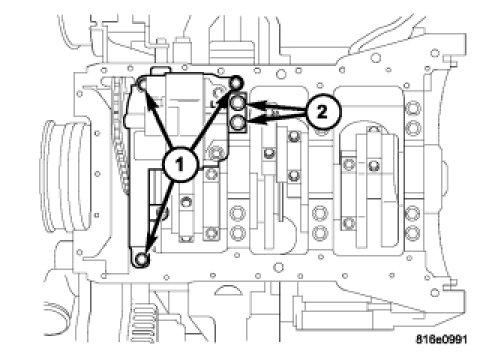

3. Install fastener for oil pump. Torque fastener to 19 Nm (14 ft. lbs.).
4. Install fastener for oil pump cover (1) with oil pipe (2) to oil pump. Torque fastener to 12 Nm (9 ft. lbs.).
5. Install bracket to the oil pump. Torque fastener to 9 Nm (7 ft. lbs.).

WARNING: Any time the oil is drained and filled it is critical to wait 15 minutes before starting the engine.

WARNING: Before checking the engine oil level turn the engine off and wait 15 minutes for the oil to return to the oil pan.

6. Install oil pan.[1][2]Engine Oil Pan - Installation.
