Engine Oil Cooler - Installation

INSTALLATION





1. Clean all engine mating surfaces.

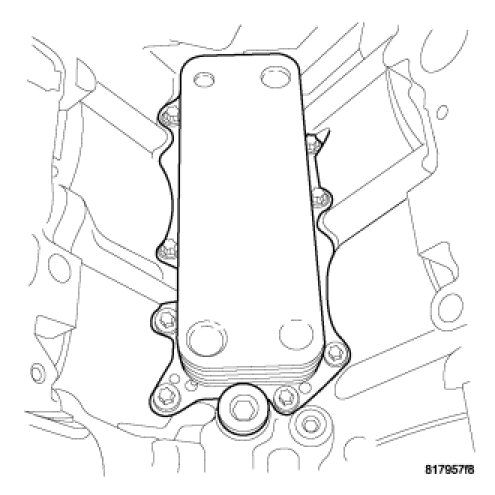

2. Position the oil cooler and gasket. Install the fasteners and tighten to 10.8 Nm (96 in. lbs.).
3. Install the water pump housing assembly with new gasket. Tighten fasteners to 24.5 Nm (18 ft. lbs.).
4. Install the oil cooler coolant hose.
5. Install the power steering reservoir.
6. Install heater hoses at housing.
7. Install lower radiator hose at housing.
8. Install the charge air hose.
9. Install coolant reservoir and hoses.
10. Install the turbocharger.Turbocharger - Installation
11. Install air cleaner assembly Service and Repair.
12. Fill the coolant system
13. Connect the negative battery cable
14. Start engine, run until warm, turn the engine off, and inspect for leaks.
