Crankshaft - Description

DESCRIPTION

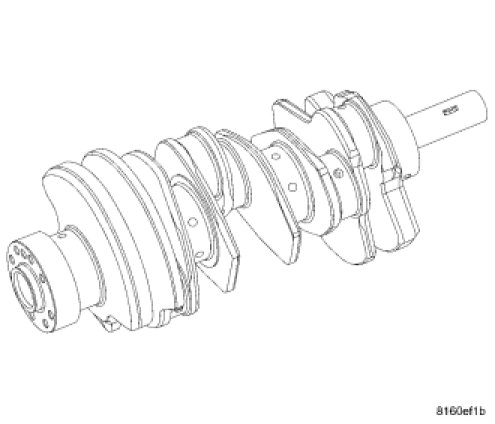

The crankshaft (1) for the 3.0L is a forged steel type design with four main bearing journals. The third crankshaft support controls crankshaft thrust. The bearing identification for the upper crankshaft main journals is etched into the engine block below the high pressure pump and the proper lower bearing selection can be found etched in the front of the crankshaft.
