Actuator-Recirculation Door-Rear 2

Component ID: 10
Component : ACTUATOR-RECIRCULATION DOOR-REAR 2

Connector:
Name : ACTUATOR-RECIRCULATION DOOR-REAR 2 C1
Color :
# of pins : 10
Gender : FEMALE




Pin Circuit Description
1 U6112 20BR/YL INTERIOR AIR TEMPERATURE SENSOR IN REAR OF VEHICLE-MINUS
2 2756 20GY/DB POTENTIOMETER-TEMPERATURE MIXING FLAP ACTUATOR MOTOR
3 2755 20RD/DB POTENTIOMETER-TEMPERATURE MIXING FLAP ACTUATOR MOTOR
4 2760 20DG/VT BLOWER CONTROL SIGNAL-REAR AIR CONDITIONING
5 2758 20YL/DB PLUS TEMPERATURE MIXING FLAP ACTUATOR MOTOR
6 2759 20BR/DB MINUS TEMPERATURE MIXING FLAP ACTUATOR MOTOR
7 U6112 20BR/YL INTERIOR AIR TEMPERATURE SENSOR IN REAR OF VEHICLE-MINUS
8 2763 20RD/YL PLUS EVAPORATOR SENSOR-FRONT
9 2762 20RD/DG PLUS REFRIGERANT SHUT-OFF VALVE
10 2761 20BR/DG MINUS REFRIGERANT SHUT-OFF VALVE



Connector:

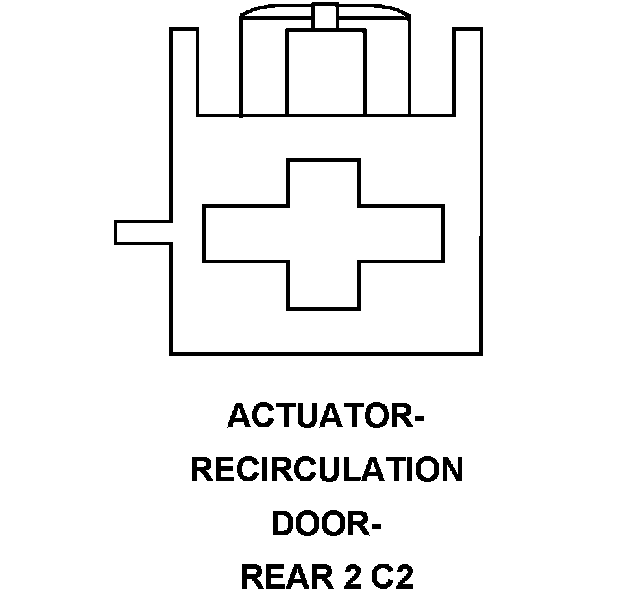

Name : ACTUATOR-RECIRCULATION DOOR-REAR 2 C2
Color :
# of pins : 1
Gender : FEMALE




Pin Circuit Description
1 2765 8BR GROUND



Connector:

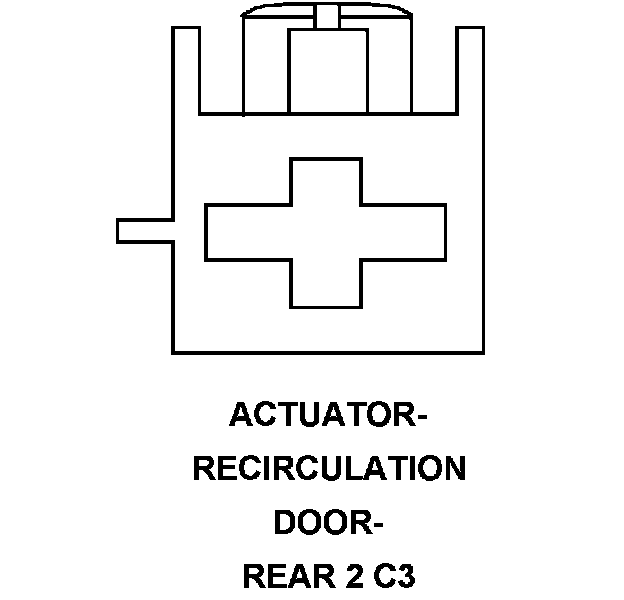

Name : ACTUATOR-RECIRCULATION DOOR-REAR 2 C3
Color :
# of pins : 1
Gender : FEMALE




Pin Circuit Description
1 2766 8RD FUSED B(+)
