Actuator-Recirculation Door-Rear 1

Component ID: 9
Component : ACTUATOR-RECIRCULATION DOOR-REAR 1

Connector:

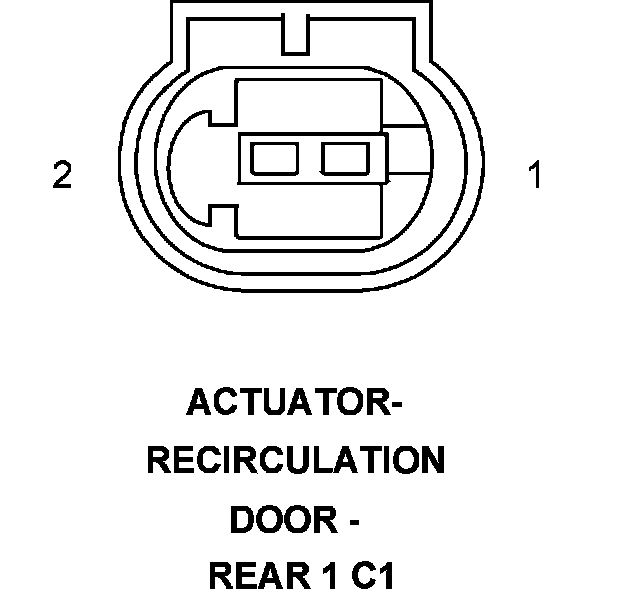

Name : ACTUATOR-RECIRCULATION DOOR-REAR 1 C1
Color :
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 2738 10BR GROUND
2 1552 10RD/GY FUSED B (+)



Connector:

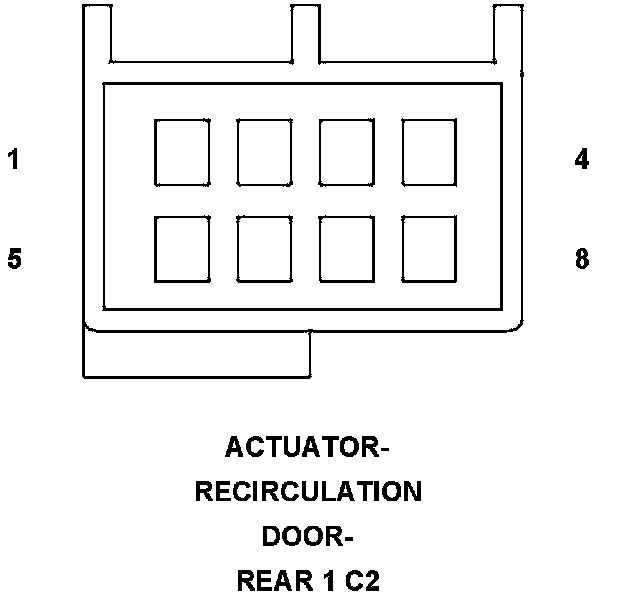

Name : ACTUATOR-RECIRCULATION DOOR-REAR 1 C2
Color :
# of pins : 8




Pin Circuit Description
1 2734 20BK/WT POTENTIOMETER-WATER VALVE-REAR HEATING
2 2736 20GY/WT POTENTIOMETER-WATER VALVE-REAR HEATING
3 2735 20RD/WT POTENTIOMETER-WATER VALVE-REAR HEATING
4 2737 20DG/RD BLOWER CONTROL SIGNAL-REAR HEATING
5 2733 20YL/WT ACTUATOR MOTOR-WATER VALVE-REAR HEATING
6 2732 20BR/WT ACTUATOR MOTOR-WATER VALVE-REAR HEATING
7 - -
8 - -
