Actuator-Blend Door 2-Roof

Component ID: 5

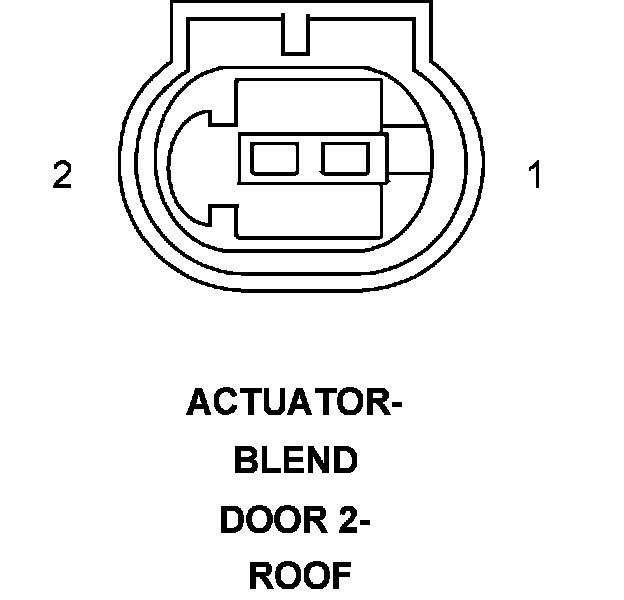

Component : ACTUATOR-BLEND DOOR 2-ROOF

Connector:
Name : ACTUATOR-BLEND DOOR 2-ROOF
Color :
# of pins : 2




Pin Circuit Description
1 3644 10RD -
2 U58 10BR GROUND
