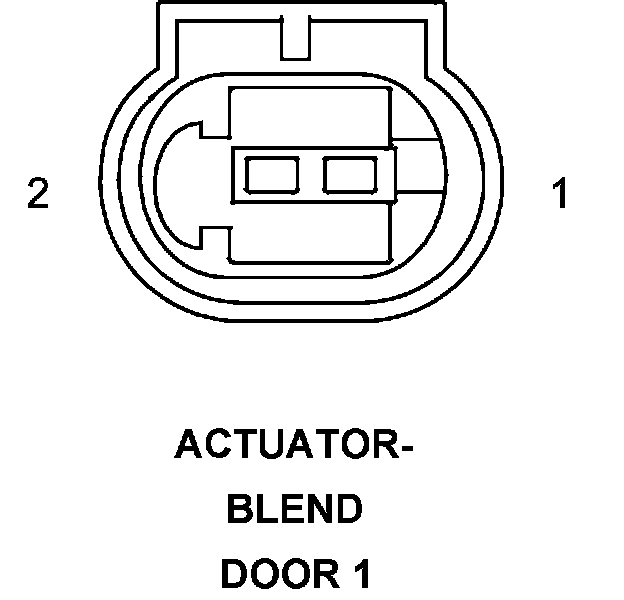

Actuator-Blend Door 1




Component ID: 2
Component : ACTUATOR-BLEND DOOR 1

Connector:
Name : ACTUATOR-BLEND DOOR 1
Color :
# of pins : 2




Pin Circuit Description
1 U54 10RD -
2 2346 10BR -
