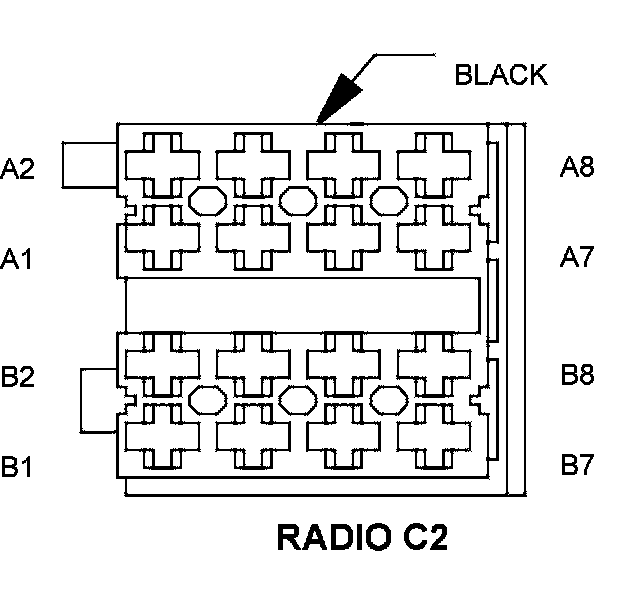

Connector-Radio Preinstallation

Component ID: 132
Component : CONNECTOR-RADIO PREINSTALLATION

Connector:
Name : CONNECTOR-RADIO PREINSTALLATION
Color :
# of pins : 16




A1 4377 20DB/RD -
A1 U61 20DB/RD -
A2 - -
A3 - -
A4 2192 14RD/BK -
A5 2195 18YL/BK -
A5 4795 18YL/BK -
A6 U815 18GY/DB -
A7 U354 14BK/YL -
A8 2193 14BR -
B1 4364 14BR/PK -
B1 4760 14BR/PK -
B1 U2882 14BR/PK -
B2 4759 14BR/GY -
B2 U2883 14BR/GY -
B2 4365 14BR/GY -
B3 U2870 14BR/OR -
B4 U2871 14BR/DB -
B5 U2868 14BR/VT -
B6 U2869 14BR/DG -
B7 4366 14BR/RD -
B7 4756 14BR/RD -
B7 U2880 14BR/RD -
B8 4755 14BR/WT -
B8 U2881 14BR/WT -
B8 4367 14BR/WT -
