Rear Cable - Single Rear Wheel (SRW)

REAR CABLE - SINGLE REAR WHEEL (SRW)

NOTE: Route the park brake cable free of tension and the risk of chafing.

1. Install the park brake cable.
2. Install all tie straps for the brake cable.




3. Install the park brake cables to the lever (4).

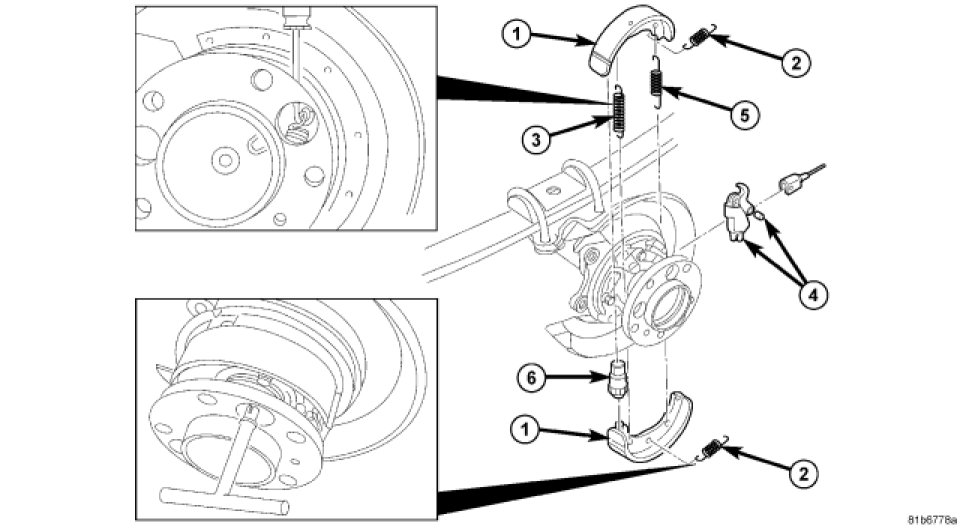

4. Install the park brake shoes (1) .




5. Install the rotor (3).
6. Install the rotor set screw (1).
7. Install the disc brake caliper adapter . Tighten to 80 Nm (59 ft. lbs.) Plus an additional 40° turn.
8. Install the rear wheels.
9. Adjust the park brakes .
10. Lower the vehicle.
