Front Cable

FRONT CABLE





1. Install the front park brake cable to the vehicle.

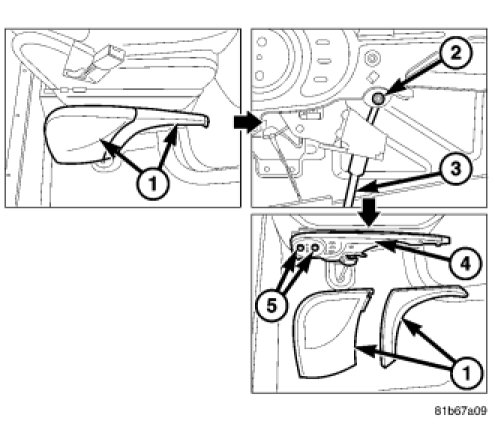

2. Install the front park brake cable (3) to the hand brake lever (2).
3. Install the trim (1) for the park brake lever.

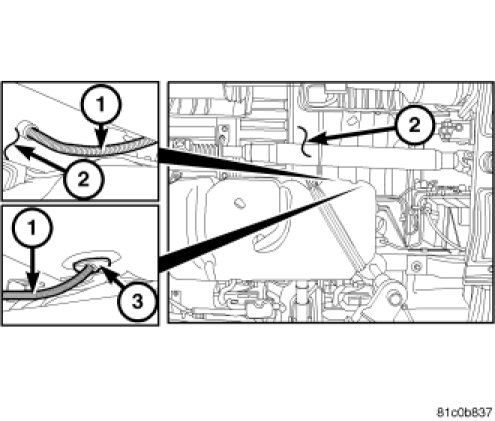

4. Install the rubber grommet (3).
5. Clip the cable guides at the frame cross member (2).
6. Reconnect the front park brake cable (1) to the pulley unit.
7. Adjust the parking park .
8. Lower the vehicle.
