Dual Rear Wheels (DRW)

DUAL REAR WHEELS (DRW)





NOTE: Route the park brake cable free of tension and the risk of chafing.

1. Install the park brake cables (4) to the vehicle.
2. Install all tie straps for the brake cable.

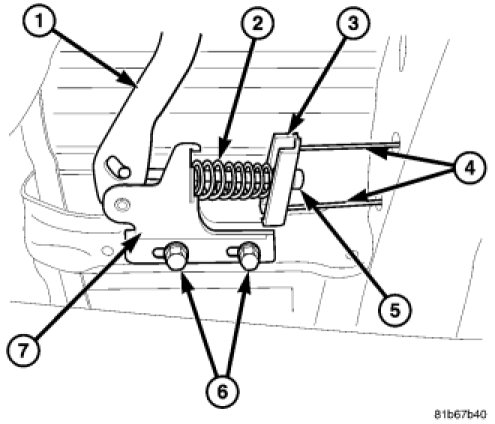

3. Install the park brake cables (4) to the equalizer (3).

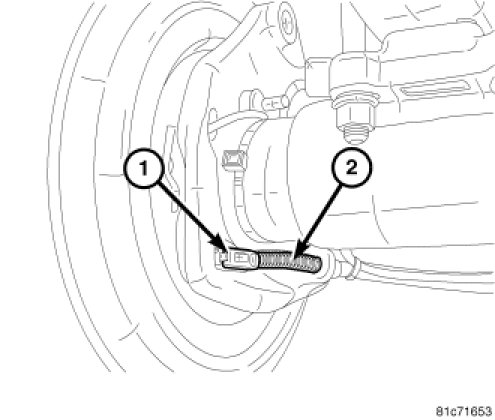

4. Install the park brake cables (2) to the lever (1).

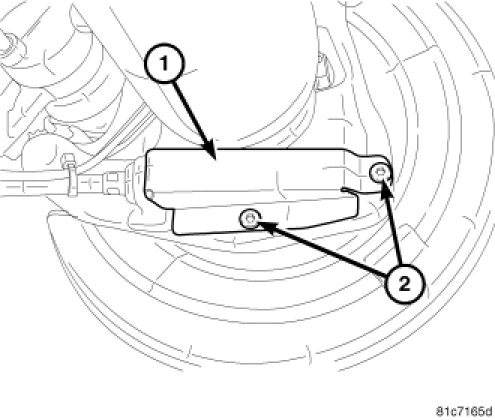

5. Install the park brake lever cover (1). Tighten the bolts (2) to 8 Nm (71in.lbs.).
6. Install the rear wheels.
7. Adjust the park brakes .
8. Lower the vehicle.
