Rear Brake Caliper - (Single Rear Wheels) (SRW)

REAR BRAKE CALIPER - (SINGLE REAR WHEELS) (SRW)

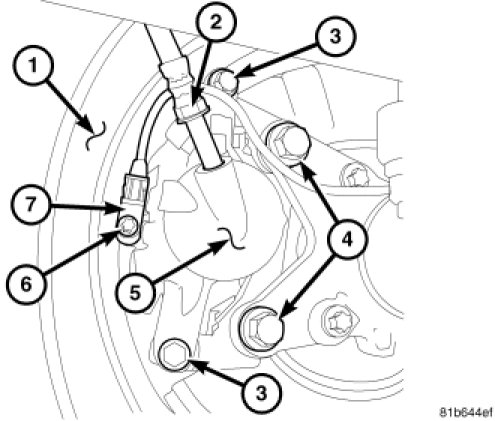

1. Install the brake caliper (5) to brake caliper adapter. Tighten the guide pin (3) to 34 Nm (283 in. lbs.) for M8 bolt or 65 Nm (48 ft. lbs.) for M10 bolt.

NOTE: Make sure the brake hose is not twisted and ensure freedom of movement.

2. Install the brake hose (2) at the brake caliper (5). Tighten the bolt to 14 Nm (124 in. lbs.).
3. Install the wear indicator (7) to the caliper then install the wear indicator bolt (6). Tighten to 10 Nm (89 in. lbs.).
4. Bleed the brake system.
5. Check the brake system for any leaks.
6. Install the rear wheels (1) .
7. Lower the vehicle.
