Rear - (Single Rear Wheels) (SRW)

REAR BRAKE PADS - (SINGLE REAR WHEELS) (SRW)

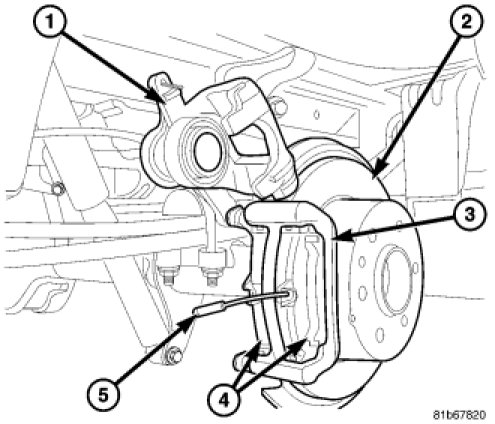

1. Install the brake pads (4).
2. Install the wear indicator cable and the wear indicator (5).

NOTE: Do not install the brake hose twisted and ensure freedom of movement.

3. Install the brake caliper (1) to brake caliper adapter (3). Tighten the guide pin to 34 Nm (283 in. lbs.) for M8 bolt or 65 Nm (48 ft. lbs.) for M10 bolt
4. Install the rear wheels .
5. Lower the vehicle.
