Armrest - Installation

INSTALLATION

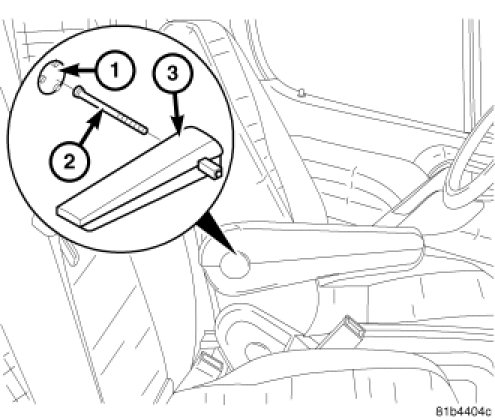

Driver Side





1. Install the armrest (3) and install the bolt (2).
2. Install the cap (1) and seat fully.

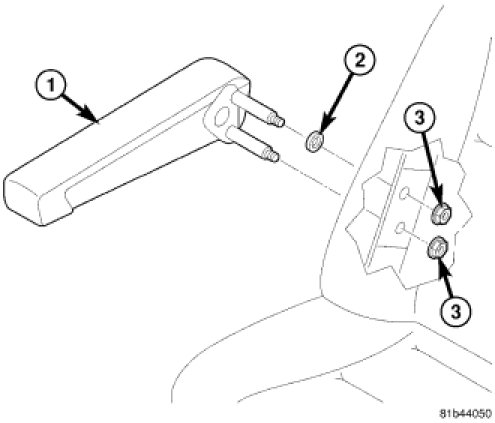

Passenger Side





1. Install the shim (2) onto the armrest (1) and install the armrest.
2. Install the nuts (3) and tighten to 20 Nm (15 ft. lbs.).
3. Install the front seat back, .
