Message Systems

9060-SUNROOF MOTOR OPERATION ABORTED-OBSTACLE DETECTED

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
Continuously with the ignition on.

- Set Condition:
The Roof Control Module (RCM) detects that a blocking condition is present when the Tilting/Sliding Roof is activated. Simultaneous failure of both Hall Sensor signals for more than 160ms. with no short circuit present.

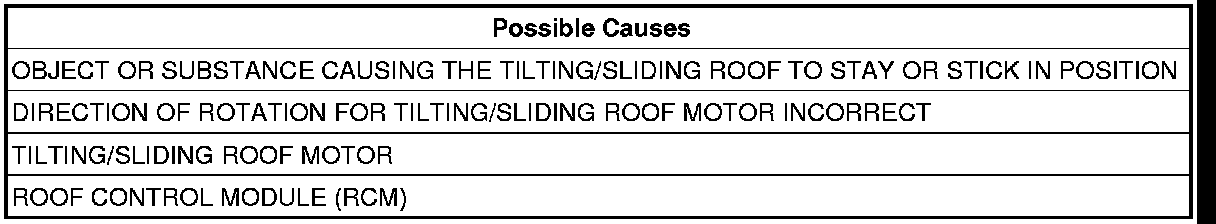

Diagnostic Test

1. DTC IS ACTIVE
Turn the ignition on.
Operate the Tilting/Sliding Roof.
With the scan tool, read RCM DTC's.
Is the DTC status Active at this time?

Yes

- Go to 2

No

- The condition that caused this symptom is currently not present. Check for an intermittent condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

2. INSPECT FOR AN OBJECT OR SUBSTANCE CAUSING THE TILTING/SLIDING ROOF TO STAY OR STICK IN POSITION
Inspect the Tilting/Sliding Roof and Sliding Roof Lining Guide Rail for anything that would cause the Tilting/Sliding Roof to stay or stick in position.
Is anything present that would cause the Tilting/Sliding Roof to stay or stick in position?

Yes

- Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Go To 3

3. DIRECTION OF ROTATION FOR TILTING/SLIDING ROOF MOTOR INCORRECT
Check the direction of rotation for the Tilting/Sliding Roof Motor.
Is the direction of rotation of the Tilting/Sliding Roof Motor correct?

Yes

- Go To 4

No

- Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

4. TILTING/SLIDING ROOF MOTOR
Turn the ignition off.
Disconnect the Tilting/Sliding Roof Motor harness connector.
Turn the ignition on.
Check the power and ground circuits to the Tilting/Sliding Roof Motor.
Are the power and ground circuits to the Tilting/Sliding Roof Motor ok?

Yes

- Replace the Tilting/Sliding Roof Motor.
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.

No

- Check the related wiring and connectors for possible shorts, open circuits, or damage. If wiring and connectors are ok, replace the Roof Control Module (RCM).
- Perform BODY VERIFICATION TEST - VER 1. Verification Tests.
