Restraints

9010-DRIVER SEAT BELT SWITCH SHORT TO BATTERY





For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on and the Occupant Classification Module (ORC) configured for a Driver Seat Belt Switch. The ORC monitors the switch input current ranges.

- Set Condition:
If the ORC detects a short to voltage on the Driver Seat Belt Buckle Switch circuits the DTC will be set active.





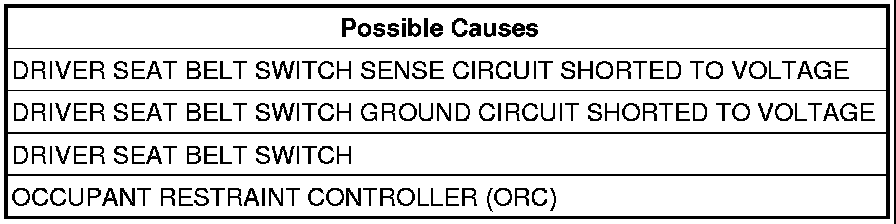

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

1. VERIFY ACTIVE DRIVER SEAT BELT SWITCH DTC

NOTE: Ensure the battery is fully charged.

Turn the ignition on.
With the scan tool, read ORC DTC.
Does the scan tool display active: 9010-DRIVER SEAT BELT SWITCH SHORT TO BATTERY?

Yes

- Go To 2

No

- Perform the *RESTRAINTS SYSTEM INTERMITTENT TEST.

2. VERIFY THE DRIVER SEAT BELT SWITCH CIRCUITS




WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Disconnect the Driver Seat Belt Switch connector.
Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.

Connect the Load Tool ORC 8443-28 Adapter to the ORC connectors.

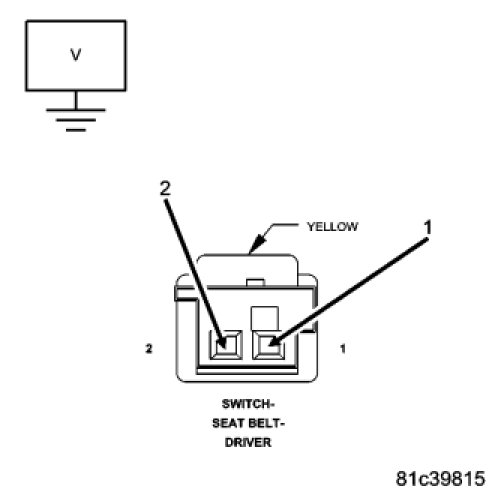

Measure the voltage on the Driver Seat Belt Switch Sense circuit between the Driver Seat Belt Switch connector cavity 2 and ground.
Measure the voltage on the Ground circuit between the Driver Seat Belt Switch connector cavity 1 and ground.
Is there any voltage on either circuit?

Yes

- Repair the Driver Seat Belt Switch circuits for a short to voltage.
- Perform *RESTRAINTS SYSTEM VERIFICATION TEST. Verification Tests

No

- Go To 3

3. VERIFY OPERATION OF THE DRIVER SEAT BELT SWITCH
Replace the Driver Seat Belt Switch.
Reconnect the vehicle body harness to the switch.
Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

Connect the scan tool to the Data Link Connector - use the most current software available.
Use the scan tool and erase the stored codes in all airbag system modules.
Turn the Ignition off, and wait 15 seconds before turning the Ignition on.
Wait one minute, and read active codes and if there are none present read the stored codes.
Did the active DTC: 9010-DRIVER SEAT BELT SWITCH SHORT TO BATTERY return?

Yes

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the proper precautions could result in accidental airbag deployment and serious or fatal injury.

- Replace the Occupant Restraint Controller.
- Perform the *RESTRAINTS SYSTEM VERIFICATION TEST. Verification Tests

No

- Repair is complete.
- Perform the *RESTRAINTS SYSTEM VERIFICATION TEST. Verification Tests
