Freightliner Truck
>>
2008
>>
Sprinter 2500 V6-3.0L DSL Turbo
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Glass
>>
Front Door Window Glass
>>
Service and Repair
>>
Front Door Glass - Installation
Front Door Glass - Installation

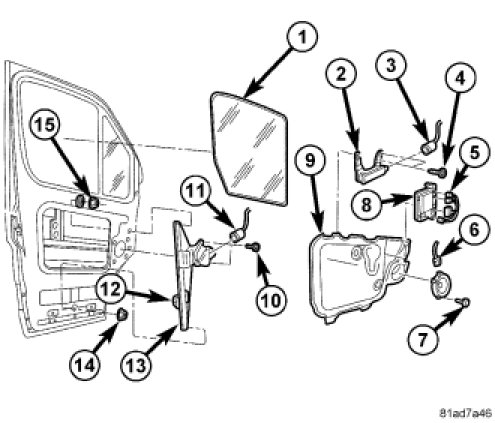

INSTALLATION
1.
Install the glass (1) into the door and position upward.
2.
Secure the glass in the up position using tape or other suitable device.
3.
Install the regulator (13), .
