Motor-Window-Driver

Component ID: 314

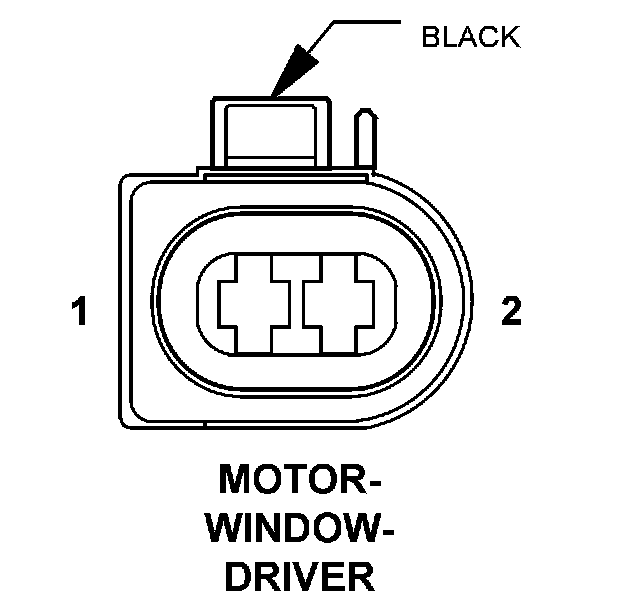

Component : MOTOR-WINDOW-DRIVER

Connector:
Name : MOTOR-WINDOW-DRIVER
Color : BLACK
# of pins : 2




Pin Circuit Description
1 16 12BK DRIVER WINDOW DRIVER (UP)
2 15 12DG DRIVER WINDOW DRIVER (DOWN)
