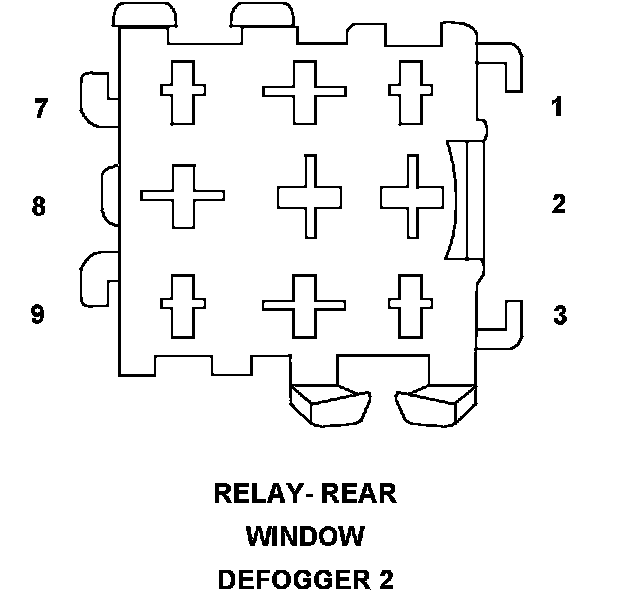

Rear Window Defogger Relay 2 (HLS) 8 Way

Component ID: 349
Component : RELAY-REAR WINDOW DEFOGGER 2

Connector:
Name : RELAY-REAR WINDOW DEFOGGER 2
Color :
# of pins : 8




Pin Circuit Description
1 - -
2 251 14RD/BK FUSED B(+)
3 - -
4 258 18BK/OR FUSED B(+)
5 - -
6 254 18BR/DB DEFOGGER RELAY 2 CONTROL
7 - -
8 255 14GY DEFOGGER RELAY 2 OUTPUT
8 4544 14GY DEFOGGER RELAY 2 OUTPUT
