Assembly

ASSEMBLY

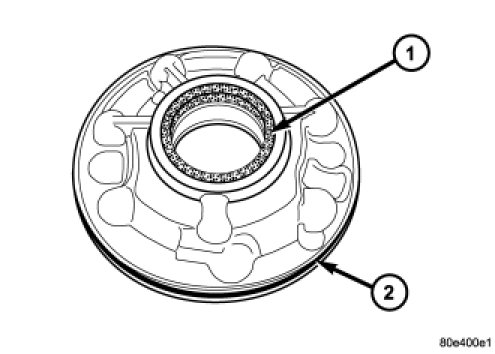

1. Install new inner oil pump seal (1) with Seal Installer 8902-A.
2. Replace O-ring (2).

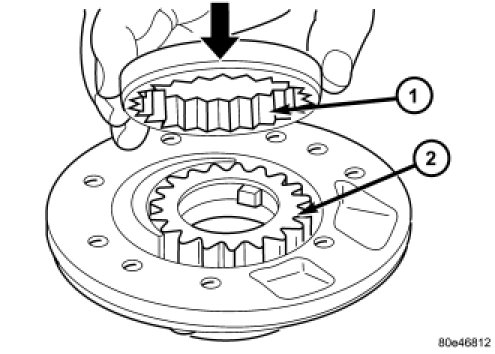

3. Lubricate pump gears and place in the pump housing. Insert pump gear (1) so that the chamfer (arrow) points towards the pump housing.
