Home >> Freightliner Truck >> 2008 >> Sprinter 2500 V6-3.0L DSL Turbo >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Application and ID >> Fuse Block #1 & #2

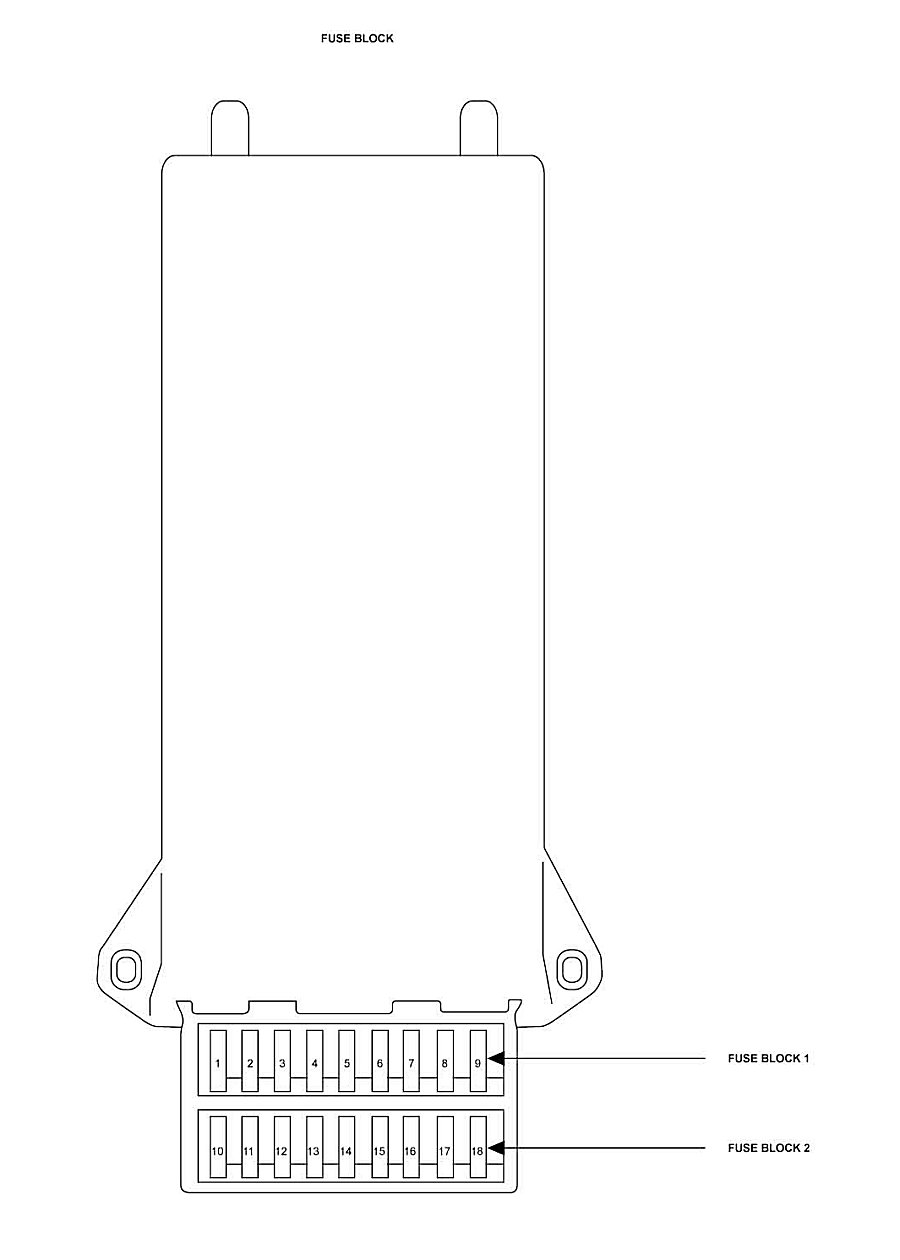

Fuse Block #1 & #2

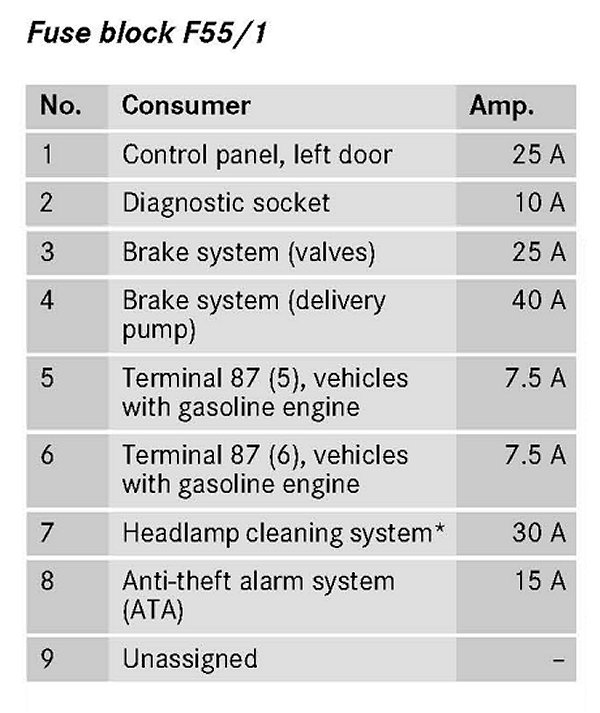

Fuse Block #1:

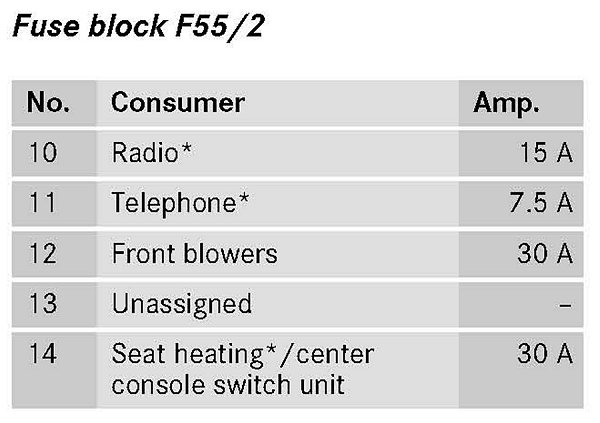

Fuse Block #2:
