Installation

INSTALLATION

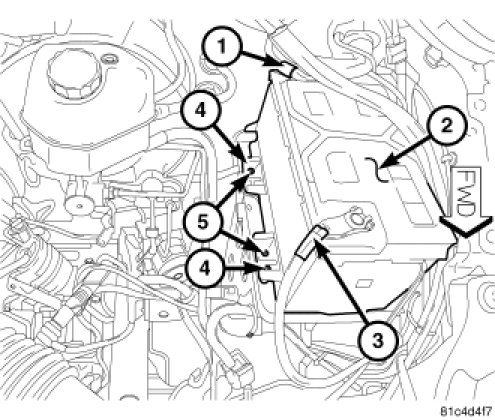

1. Position the auxiliary battery (2) onto the battery tray at the left front engine compartment.
2. Install the two retaining brackets (4) onto the battery tray.
3. Install the retaining bracket fasteners (5).
4. Connect the auxiliary battery positive cable (3).
5. Connect the auxiliary battery negative cable (1).
