Fuel Pressure Sensor/Switch: Diagrams

Component ID: 508

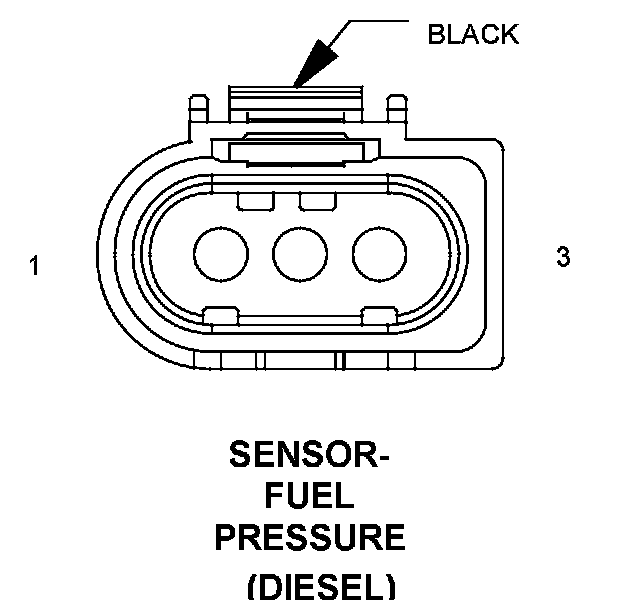

Component : SENSOR-FUEL PRESSURE

Connector:
Name : SENSOR-FUEL PRESSURE
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)
Gender : FEMALE




Pin Circuit Description
1 1320 20OR FUEL PRESSURE SENSOR GROUND
2 1319 20VT/DG FUEL PRESSURE SENSOR SIGNAL
3 1321 20YL/VT FUEL PRESSURE SENSOR 5 VOLT SUPPLY
