Removal







REMOVAL

1. disconnect the battery negative cable.

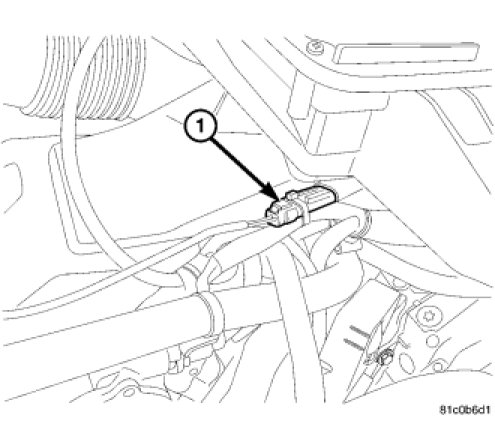

2. Disconnect the EGR temperature sensor harness connector (1).

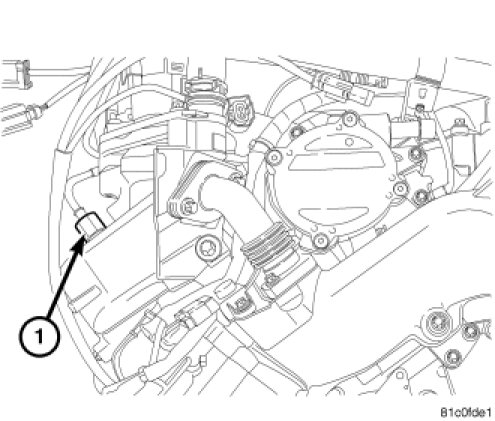

3. Remove the EGR temperature sensor (1).
