EGR Valve Position Sensor: Diagrams




Component ID: 499
Component : SENSOR-EGR POSITION

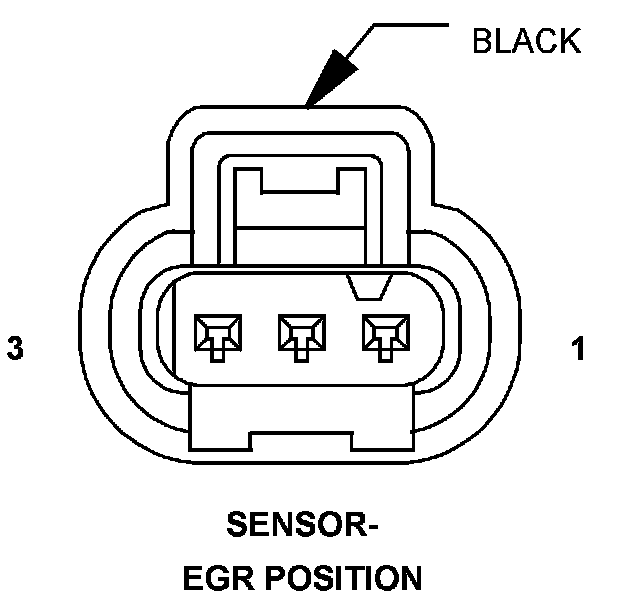

Connector:
Name : SENSOR-EGR POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Circuit Description
1 U760 20RD/YL EGR POSITION SENSOR 5 VOLT SUPPLY
2 4134 20VT/GY -
3 4133 20GY/BR -
