Description

DESCRIPTION





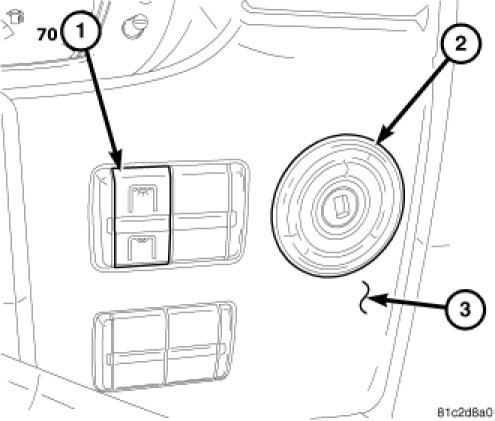

The optional interior rear lighting master switch (1) is located in the instrument panel cluster bezel (3) between the right side of the steering column and the ignition switch (2). The switch housing and the push buttons are constructed of molded black plastic. The three-position switch rocker button has a smooth finish and is clearly identified with the appropriate International Control and Display Symbol icons. A panel lamps dimmer controlled illumination lamp integral to the switch provides back lighting for visibility at night when the exterior lighting is turned ON, but this lamp is not serviceable.

Two latch features integral to the switch housing secure the switch within one of four molded receptacles integral to the right side of the cluster bezel. The receptacle in which the switch is located varies, depending upon optional equipment that might cause the other receptacles in the bezel to be populated. The back of the switch housing has an integral connector receptacle containing terminal pins that connect the switch to the vehicle electrical system through a dedicated take out and connector of the vehicle wire harness.

The interior rear lighting master switch cannot be repaired or adjusted. If the switch is ineffective or damaged, the entire switch must be replaced.
