Installation

INSTALLATION

WARNING: To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

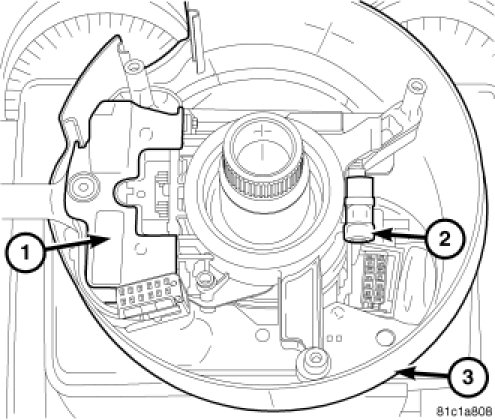

1. Position the multi-function switch (1) to the steering column trim (3) and the mounting bracket.
2. Working from the back of the unit, install and tighten the screws that secure the multi-function switch to the steering column trim and the mounting bracket. Tighten the screws securely.
3. Position the multi-function switch, mounting bracket and steering column trim onto the top of the steering column as a unit.
4. Working through the access hole in the lower right surface of the steering column trim, install and tighten the screw (2) that secures the multi-function switch, mounting bracket and trim to the tab on the top of the steering column. Tighten the screw securely.
5. Reinstall the speed control switch onto the steering column. .
6. Reconnect the battery negative cable.
