Removal

REMOVAL

WARNING: Review safety precautions and warnings in this group before performing this procedure and . Failure to follow the warnings and cautions may result in serious or fatal injury.





1. Disconnect and isolate the negative battery cable.
2. Recover the refrigerant from the rear refrigerant system .
3. Remove the rear condenser cover from the top of the vehicle.

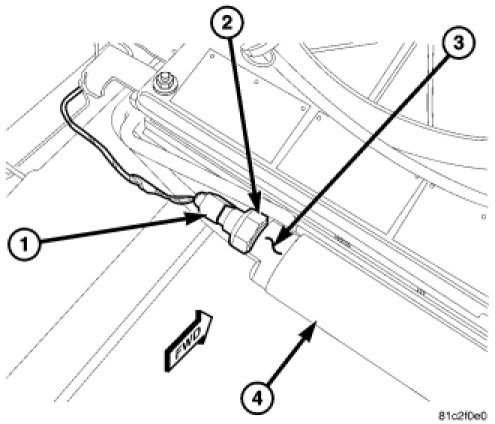

4. Disconnect the wire harness connector (1) from the rear A/C pressure transducer (2) located on the rear A/C liquid line (3) at the left end of the A/C receiver drier (4)
5. Remove the rear A/C pressure transducer from the rear A/C liquid line and remove and discard the O-ring seal.
