Ambient Temperature Sensor / Switch HVAC: Diagrams

Component ID: 486
Component : SENSOR-AMBIENT AIR TEMPERATURE

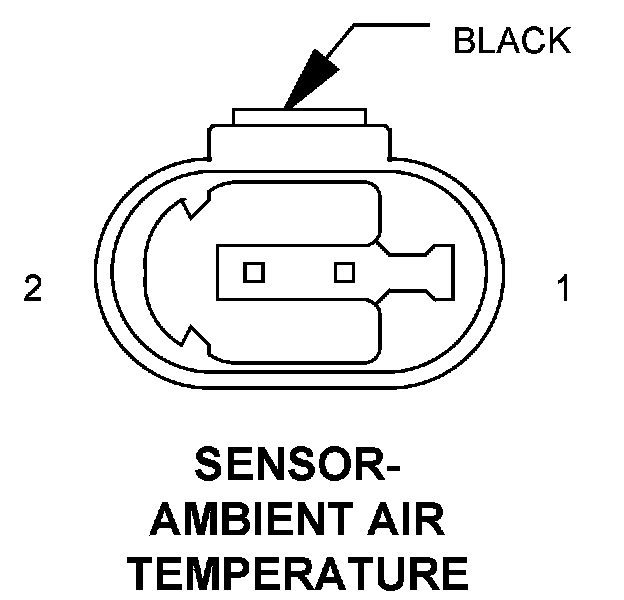

Connector:
Name : SENSOR-AMBIENT AIR TEMPERATURE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 522 20BR SENSOR GROUND
2 523 20DG AAT SIGNAL
