Oil Temperature Sensor/Switch: Diagrams

Component ID: 528
Component : SENSOR-OIL TEMPERATURE

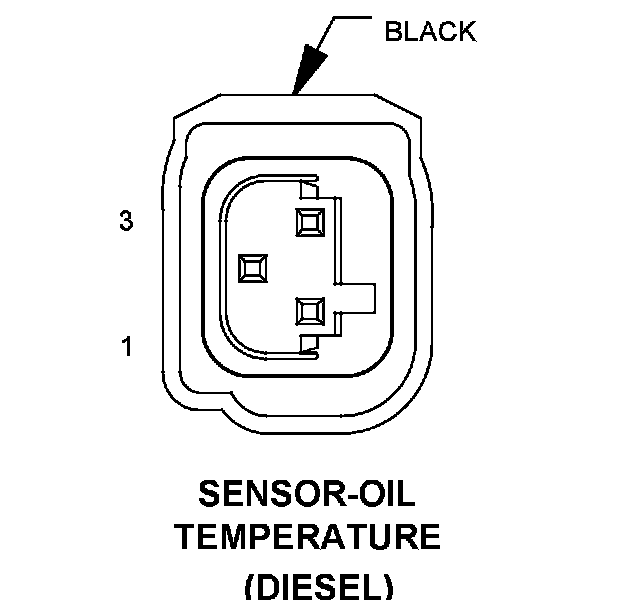

Connector:
Name : SENSOR-OIL TEMPERATURE
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)
Gender : FEMALE




Pin Circuit Description
1 1298 20GY/DB -
2 3272 20BR/BK -
3 1297 20PK/GY -
