Installation

INSTALLATION

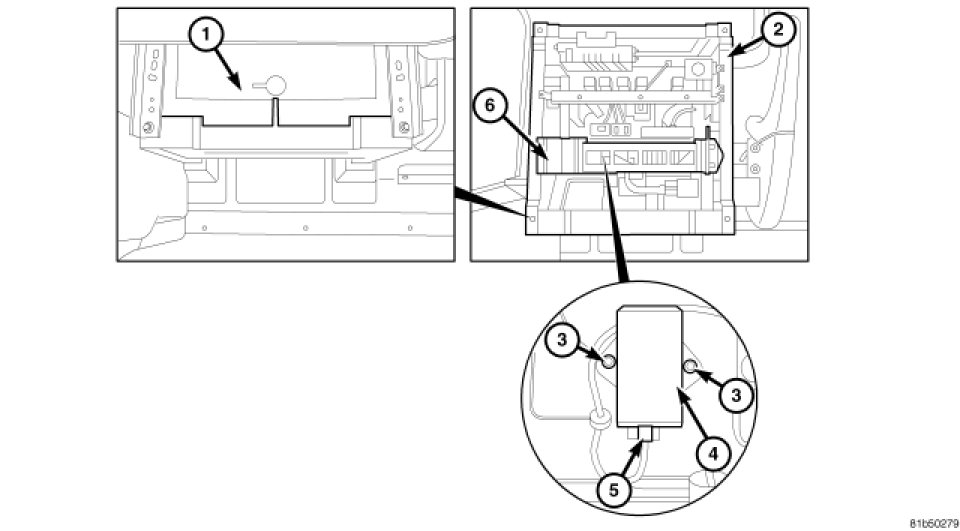

1. Reconnect the dynamics sensor electrical connector (5).
2. Install the dynamics sensor (4).
3. Install the screws (3) securing the dynamics sensor. Tighten to 6 Nm (53 in.lbs).
4. Install the bracket (6) with the control modules onto the drivers seat frame (2).
5. Install the cover (1) for the drivers seat.
6. Install the drivers seat.
7. Reconnect the battery.
8. Perform diagnosis quick check and road test the vehicle.
