Sensor-Park Assist 9

Component ID: 543

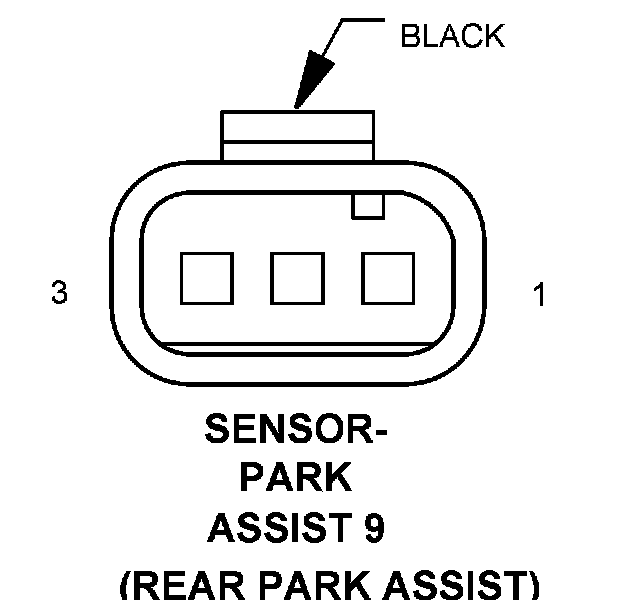

Component : SENSOR-PARK ASSIST 9

Connector:
Name : SENSOR-PARK ASSIST 9
Color : BLACK
# of pins : 3
Qualifier : (REAR PARK ASSIST)




Pin Circuit Description
1 615 20YL/RD PARK ASSIST SENSOR 9 SIGNAL
2 U361 20BR/DB GROUND
3 U362 20BK/YL PARK ASSIST SENSOR SUPPLY
