Sensor-Park Assist 8

Component ID: 542

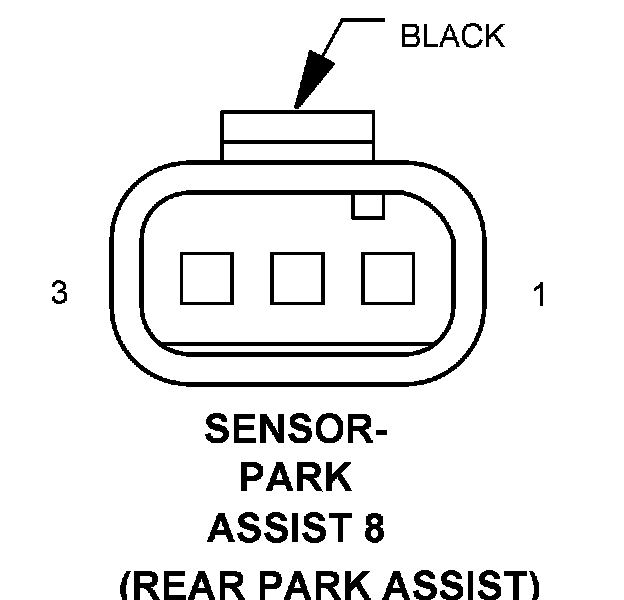

Component : SENSOR-PARK ASSIST 8

Connector:
Name : SENSOR-PARK ASSIST 8
Color : BLACK
# of pins : 3
Qualifier : (REAR PARK ASSIST)




Pin Circuit Description
1 612 20YL/VT PARK ASSIST SENSOR 8 SIGNAL
2 U361 20BR/DB GROUND
3 U362 20BK/YL PARK ASSIST SENSOR SUPPLY
