Sensor-Park Assist 7

Component ID: 541

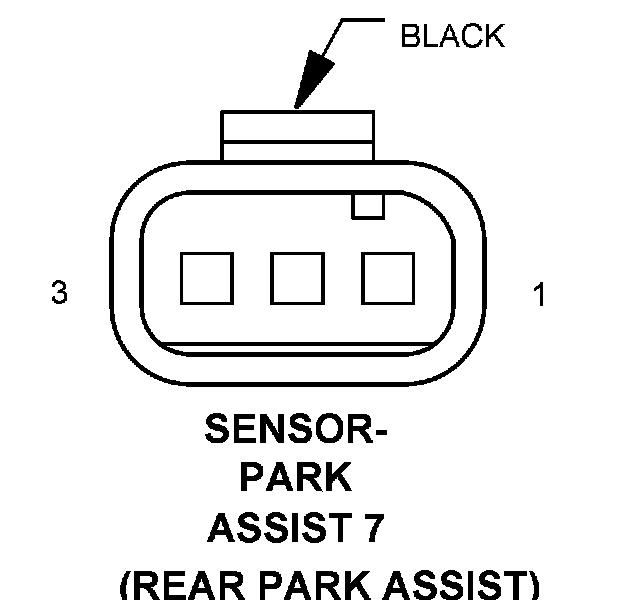

Component : SENSOR-PARK ASSIST 7

Connector:
Name : SENSOR-PARK ASSIST 7
Color : BLACK
# of pins : 3
Qualifier : (REAR PARK ASSIST)




Pin Circuit Description
1 69 20YL/WT PARK ASSIST SENSOR 7 SIGNAL
2 U361 20BR/DB GROUND
3 U362 20BK/YL PARK ASSIST SENSOR SUPPLY
