Sensor-Park Assist 6

Component ID: 540

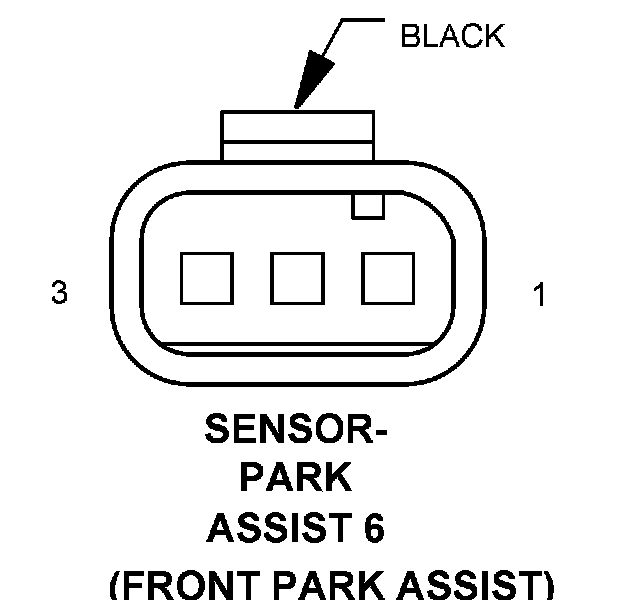

Component : SENSOR-PARK ASSIST 6

Connector:
Name : SENSOR-PARK ASSIST 6
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Circuit Description
1 647 20BK/WT PARK ASSIST SENSOR 6 SIGNAL
2 U363 20BR/DB GROUND
3 U364 20BK/YL FRONT PARK ASSIST SENSOR SUPPLY
