Sensor-Park Assist 2

Component ID: 536
Component : SENSOR-PARK ASSIST 2

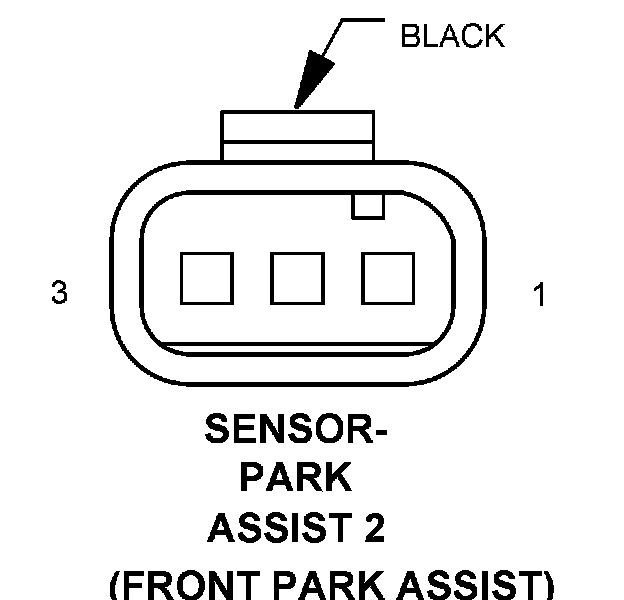

Connector:
Name : SENSOR-PARK ASSIST 2
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Circuit Description
1 635 20YL/RD PARK ASSIST SENSOR 2 SIGNAL
2 U363 20BR/DB GROUND
3 U364 20BK/YL FRONT PARK ASSIST SENSOR SUPPLY
