Sensor-Park Assist 10

Component ID: 535

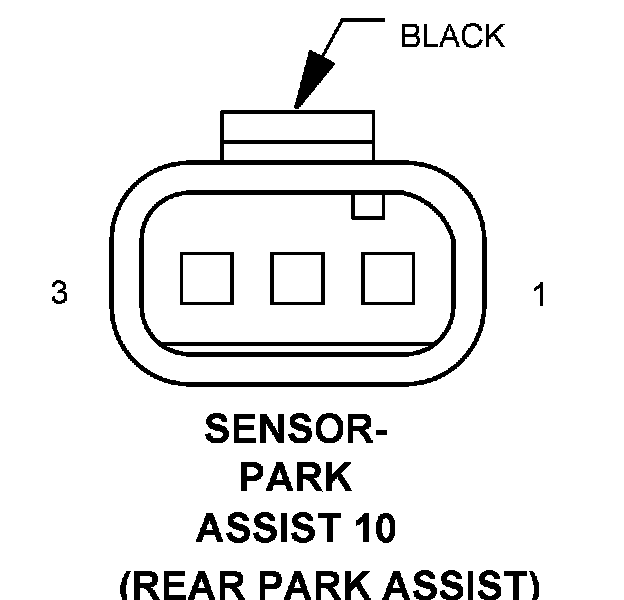

Component : SENSOR-PARK ASSIST 10

Connector:
Name : SENSOR-PARK ASSIST 10
Color : BLACK
# of pins : 3
Qualifier : (REAR PARK ASSIST)




Pin Circuit Description
1 618 20DB/YL PARK ASSIST SENSOR 10 SIGNAL
2 U361 20BR/DB GROUND
3 U362 20BK/YL PARK ASSIST SENSOR SUPPLY
