Sensor-Park Assist 1

Component ID: 534

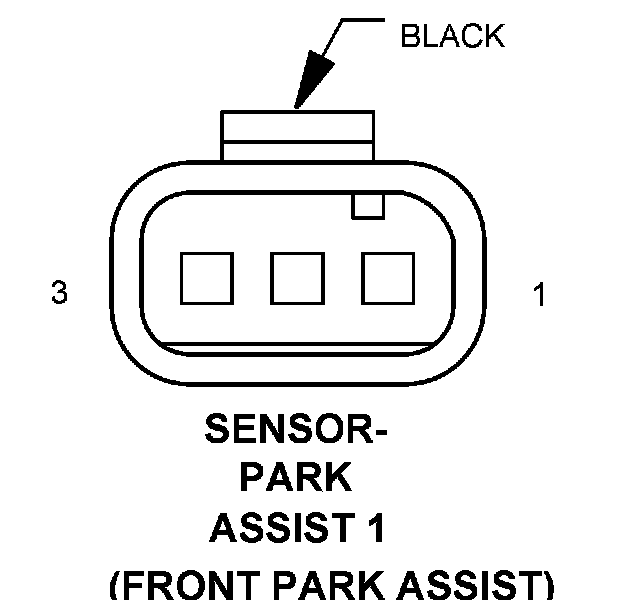

Component : SENSOR-PARK ASSIST 1

Connector:
Name : SENSOR-PARK ASSIST 1
Color : BLACK
# of pins : 3
Qualifier : (FRONT PARK ASSIST)




Pin Circuit Description
1 629 20DB/YL PARK ASSIST SENSOR 1 SIGNAL
2 U363 20BR/DB GROUND
3 U364 20BK/YL FRONT PARK ASSIST SENSOR SUPPLY
