Front

FRONT

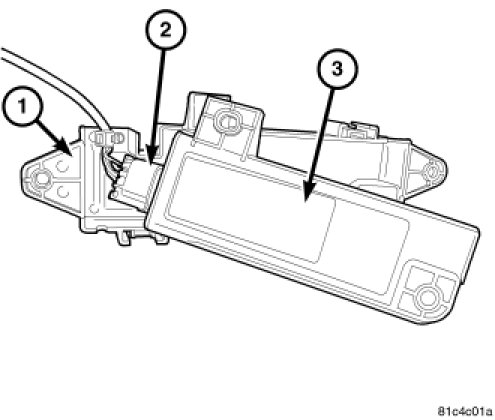

1. Reconnect the electrical connector (2) to the transponder (3).
2. Install the transponder (3) into the cover (1).

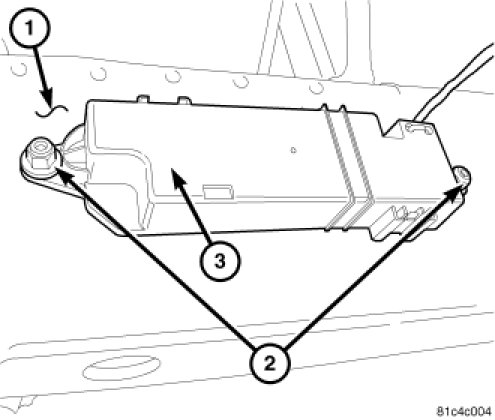

3. Install the transponder with the cover (3) onto the frame rail (1). Tighten the nuts to 3 Nm (25 in.lbs.).
4. Install the front part of the wheel well housing cover.
5. Lower the vehicle.
