Rear Blower Motor Power Module - Installation

INSTALLATION

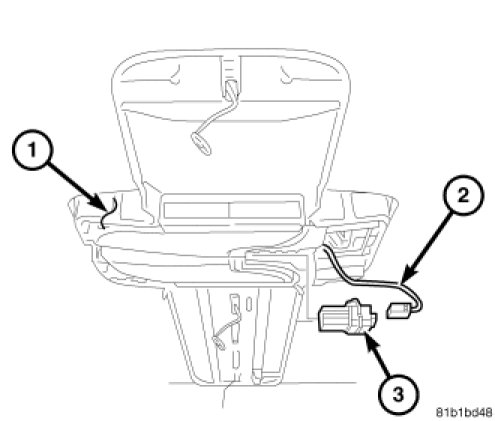

1. Position the rear blower motor power module (3) to the rear evaporator housing (1) and connect the wire harness connector (2) to the module.
2. Install the rear blower motor power module into the rear evaporator housing and rotate the module a 1/4 turn clockwise until it is fully seated in the housing. Make sure the power module is fully engaged to the housing.

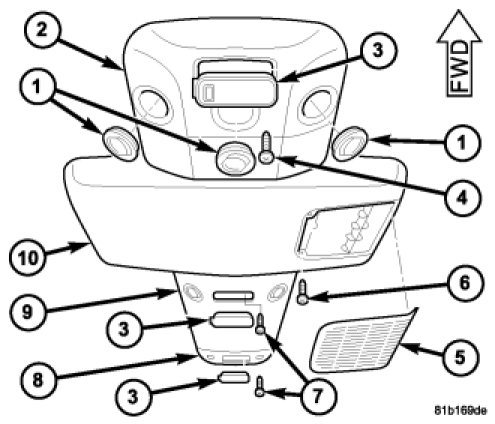

3. Install the rear evaporator trim panel (10) and retaining screws (6). Tighten the screws to 2 Nm (17 in. lbs.).
4. Install the air intake grille (5) onto the rear evaporator trim panel. Make sure the retaining tabs are fully engaged to the trim panel.
5. Install the front, center and rear roof duct trim panels (2, 9 and 8) and retaining screws (4 and 7). Tighten the screws to 2 Nm (17 in. lbs.).
6. Install the dome lamps (3).
7. Install the air outlets (1) .
8. Reconnect the negative battery cable.
