Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the screws that secure the rear condenser cover to the top of the vehicle and remove the cover.

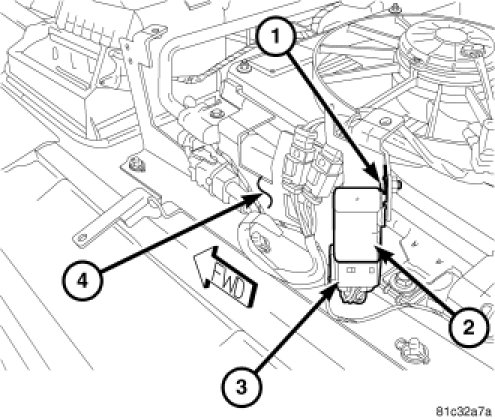

3. Remove the screw (1) that secures the rear condenser fan relay (2) to left side of the rear condenser mounting bracket (4).
4. Remove the rear condenser fan relay from the mounting bracket and disconnect the wire harness connector (3) from the relay.
