Installation

INSTALLATION

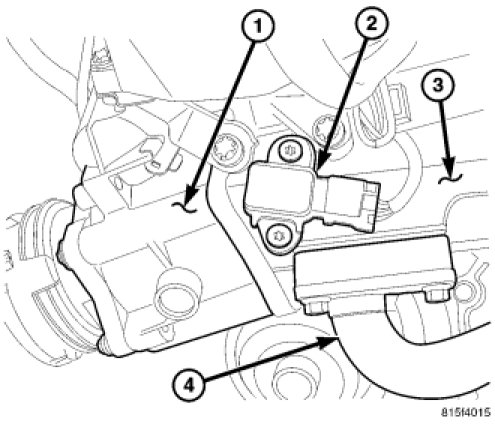

1. Position the boost pressure sensor (2) onto the charge air cross over tube (3) and install the fasteners. Tighten the fasteners to 9 Nm (80 in. lbs.).
2. Connect the sensor wiring harness connector.
3. Connect the negative battery cable.
