EGR Valve - Installation

INSTALLATION - 3.0L DIESEL

1. Clean EGR valve sealing surfaces and install a new gasket.

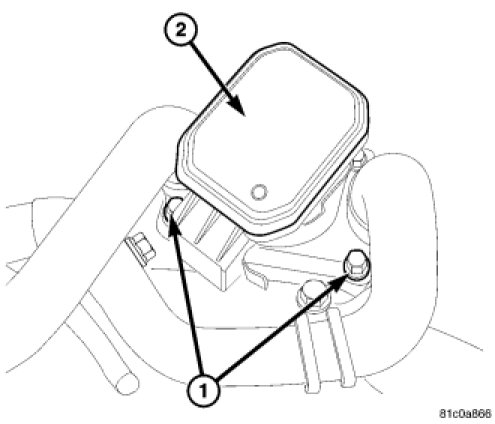

2. Install the EGR valve (2), and install the front EGR valve retaining bolts (1).

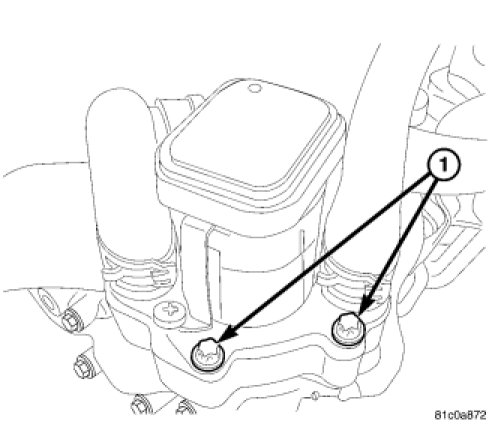

3. Install the rear EGR valve retaining bolts (1).

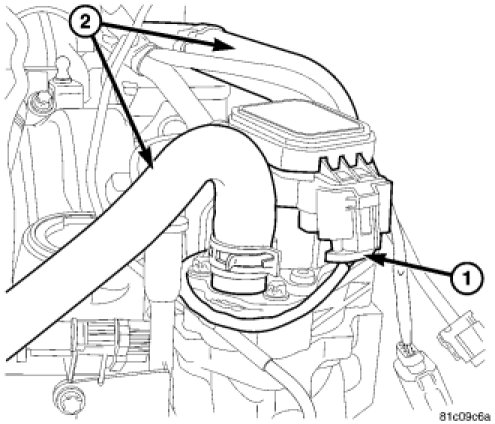

4. Reconnect the coolant hoses (2).
5. Reconnect the EGR valve harness connector (1).
6. Install engine cover.
7. Connect the negative battery cable.
