Rear EGR Tube

INSTALLATION - FRONT EGR TUBE

1. Clean the rear EGR tube mounting surfaces.
2. Install the rear EGR tube.

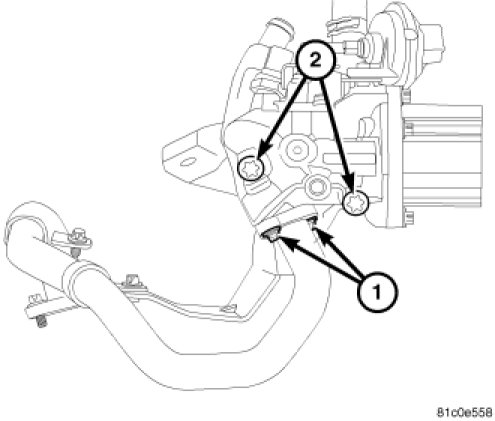

3. Install the rear EGR tube upper bolts (1). Do not tighten the rear EGR tube upper bolts at this time.

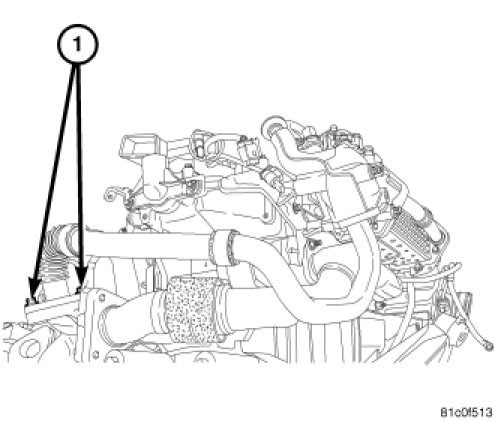

4. Install the rear EGR tube lower bolts (1). Do not tighten the rear EGR tube lower bolts at this time.

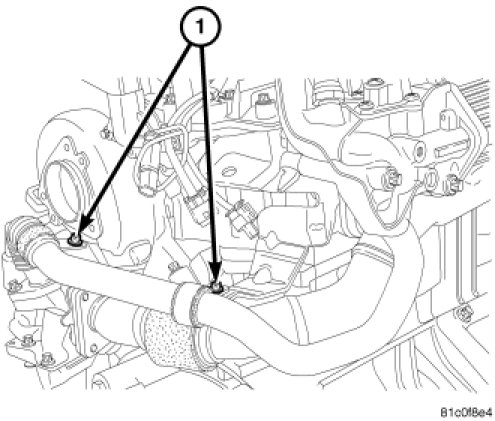

5. Install the rear EGR tube bracket bolts (1).
6. Tighten the rear EGR tube upper bolts.
7. Tighten the rear EGR tube lower bolts.
8. Install the air filter housing.
9. Install the engine cover.
10. Reconnect the battery negative cable.
