Front EGR Tube

INSTALLATION - FRONT EGR TUBE

1. Clean all front EGR tube mounting surfaces.

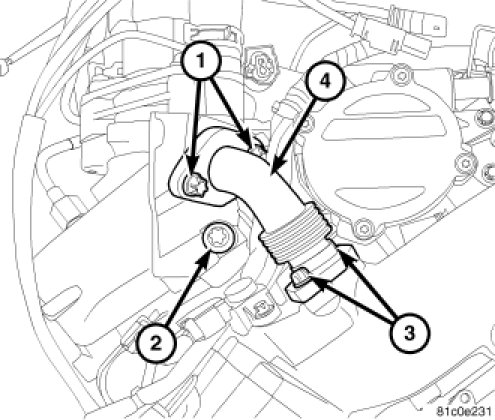

2. Install the front EGR tube (4), and install the front EGR tube lower bolts (3). Do not tighten the front EGR tube lower bolts at this time
3. Install a new front EGR tube upper gasket.
4. Install the front EGR tube upper bolts (1).
5. Tighten the front EGR tube lower bolts.
6. Reconnect the negative battery cable.
