Installation

INSTALLATION

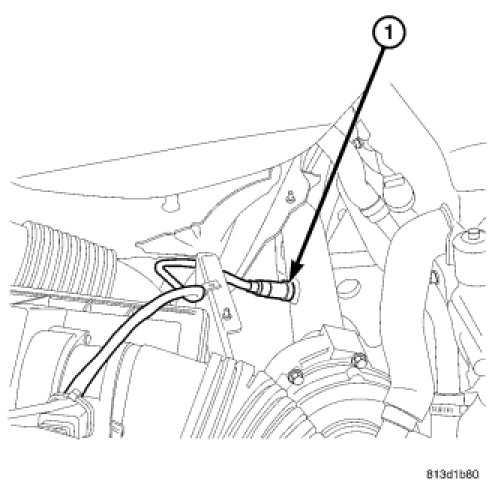

1. Install the oxygen sensor (1).

2. Properly position the oxygen sensor wiring harness and connect the electrical connector.
3. Connect the negative battery cable.
