Removal

REMOVAL





1. Disconnect the negative battery cable.

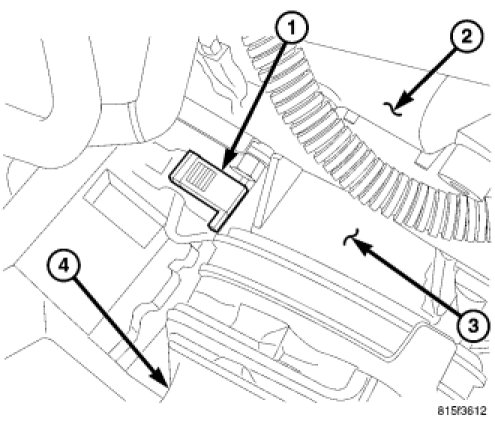

2. Unplug the wiring harness connector at the intake air temperature sensor (1).
3. Press together the sensor locking arms and remove the sensor (1) from the air control valve extention (3).
